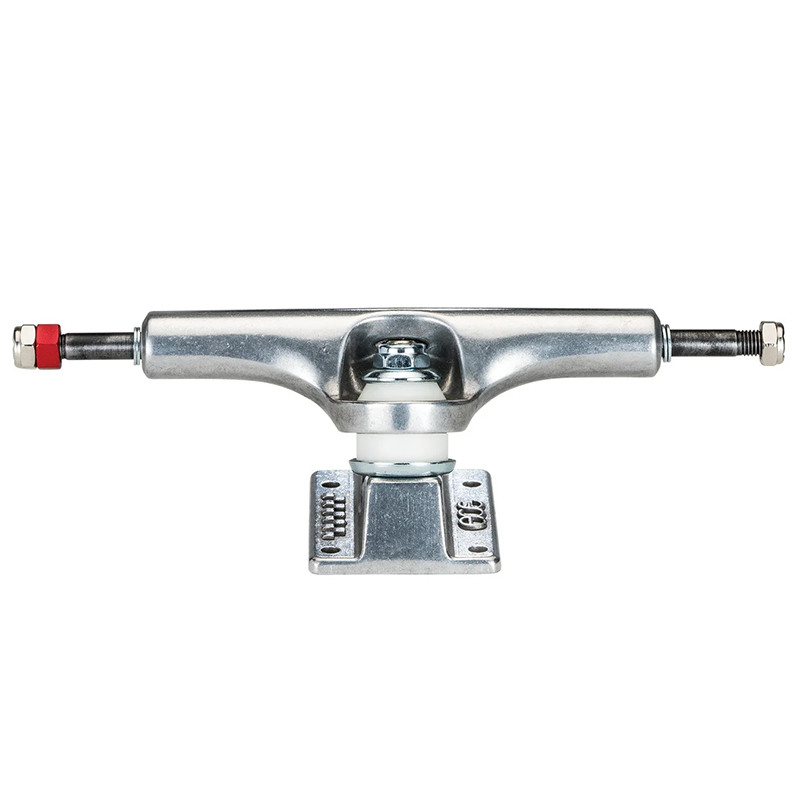

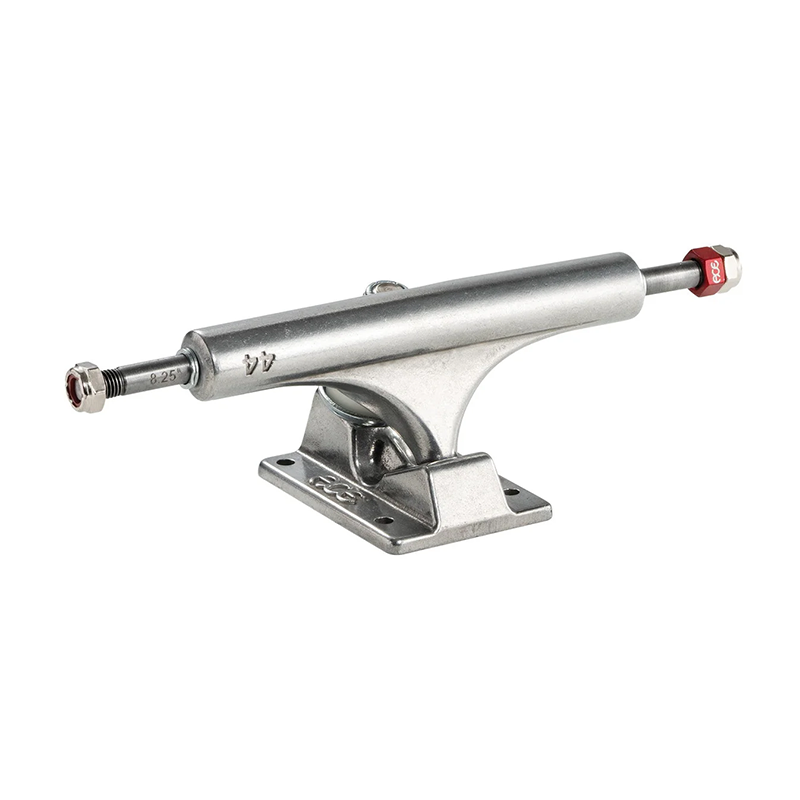

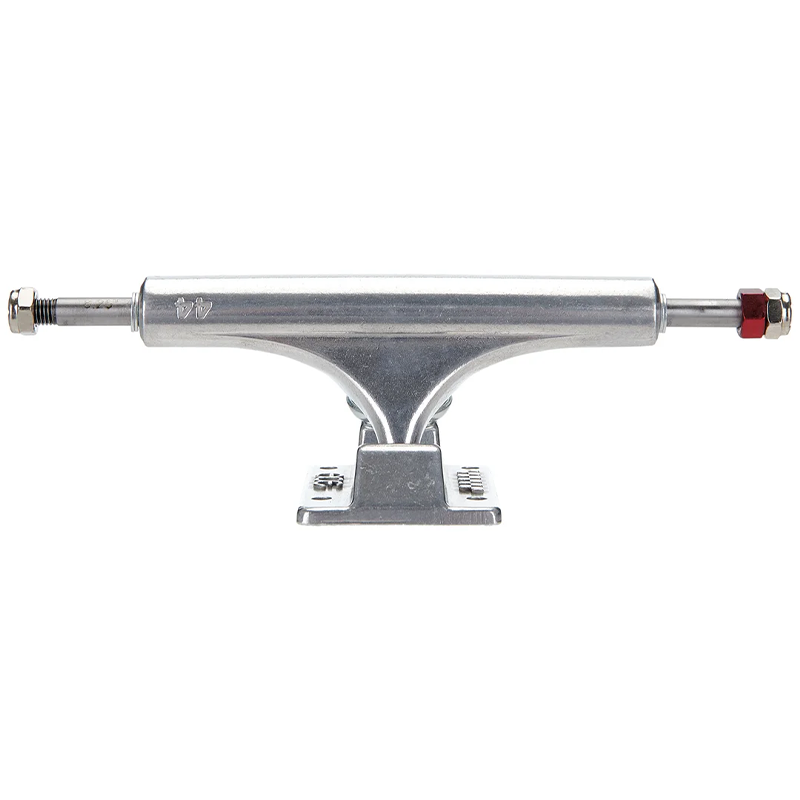

Ace AF1 Truck Polished

Price is for 1 truck, add 2 to the cart for a set of trucks (2 trucks)

The ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.

Specifications:

• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method.
•  True T6 heat-treated baseplates and hangers.
•  SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
• Each truck includes bonus red Axle Re-Theader Die

Truck Sizing:

• 33 - 8.0 in
• 44 - 8.25 in
• 55 - 8.5 in
• 60 - 8.75 in
• 66 - 9.0 in
• 77 - 9.5 in
